Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating

one 40 HQ
MOQ
আলোচনাযোগ্য
মূল্য
Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Material: Q345, Q235
Surface treatment: hot dip galvanized powder coating
Power Supply: AC
Lampshade Material: Toughened Glass
Warranty: 15 years
Thickness: 1mm to 26mm
বিশেষভাবে তুলে ধরা:

driveway light poles

,

highway light pole

মৌলিক তথ্য
Place of Origin: Jiangsu, China
পরিচিতিমুলক নাম: Milky Way
সাক্ষ্যদান: ISO, BV,
Model Number: Traffic Light Signals
প্রদান
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
পণ্যের বর্ণনা

 Steel Octagonal Powder Coating Traffic Light Signals for Street Signal Pole





 Descripition of material:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

 Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating 0





Specification

Height

From 3 meter to 15 meter

Suit for

Airport, seaport, roadway, etc

Shape

Round conical; Octagonal tapered; Straight square;

Tubular stepped;

Shafts are made of steel sheet that folded into required

shape and welded longitudinally by automaticarc welding machine

Material

 Q235B or Q345 by , same grade EN44 .SS400

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester

powder or any other standard by client required.

Joint of Poles

Slip joint, flanged connected

Base plate mounted

Base plate is square or round in shape with slotted holes

for anchor bolt and dimension as per customers requirement.

Wind Resistance

Aganist wind pressure of 160Km/h

Certificates

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →

sample assemble → surface clean→ Galvanization or powder coating ,

painting →Recalibration →Packages

Packages

Packing with plastic paper or according to client’s request.

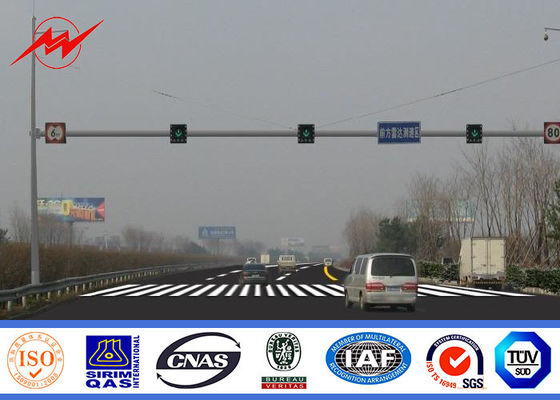

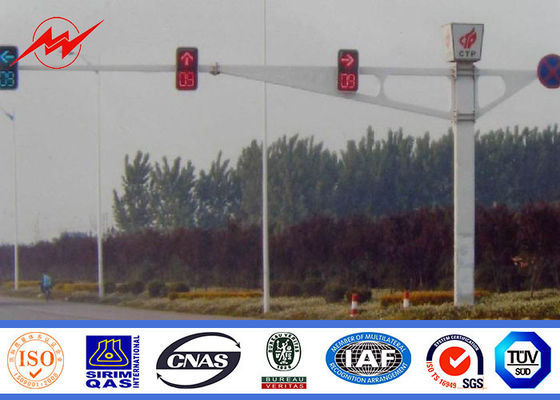

Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating 1

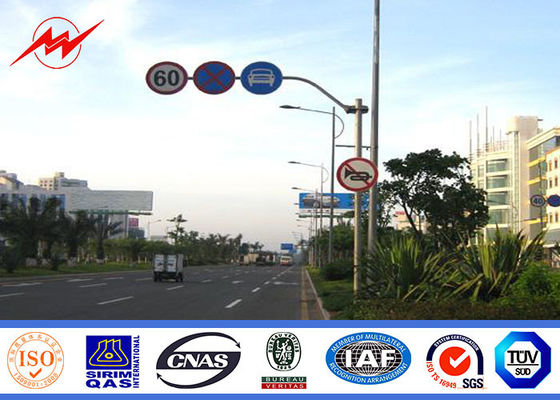

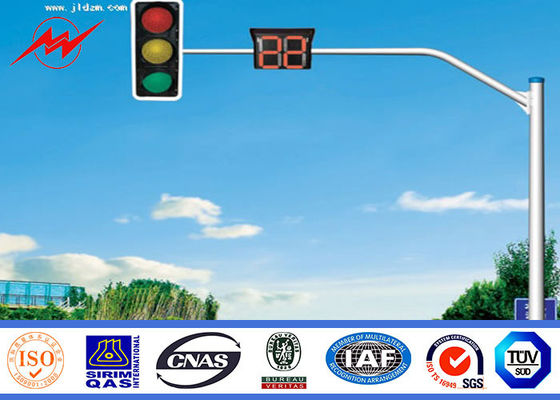

 Octagonal Steel Street Lighting Poles Traffic Light Signals With Powder Coating 2



 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 After 20 years of development, our company products are exported to overseas. Pakistan, Germany,  Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad  market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales,  which made us become one of the leading export enterprises in china.
