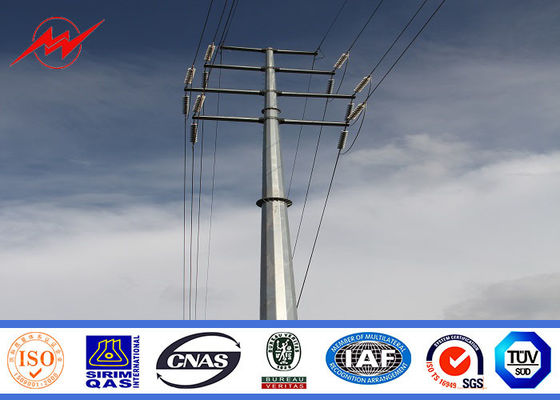

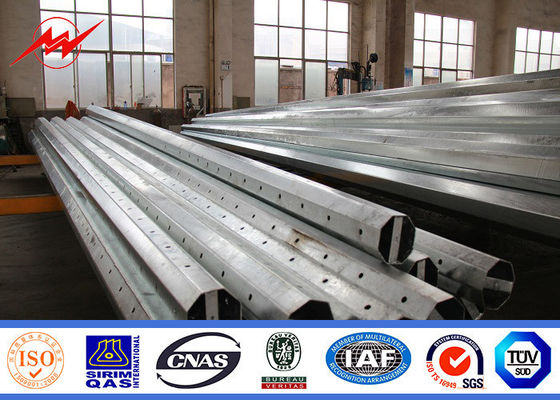

70FT 1200kg Power Transmission Poles For Outside Electrical Transmission Line

one 40 HQ
MOQ
আলোচনাযোগ্য
মূল্য
70FT 1200kg Power Transmission Poles For Outside Electrical Transmission Line
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Standard: ISO 9001
Wind Speed: 160km/h, 30m/s
Thickness: 1mm to 30mm
Welding Standard: AWS D1.1
Tolerance: +/-2%
Design Load in Kg: 300~ 1000 Kg applicated to 50cm from the to pole
বিশেষভাবে তুলে ধরা:

power distribution poles

,

steel power poles
মৌলিক তথ্য
Place of Origin: China
পরিচিতিমুলক নাম: Milky Way
সাক্ষ্যদান: /BV/ISO
Model Number: 70FT Power Transmission Poles For Outside Electrical Transmission Line
প্রদান
Packaging Details: as per customer request
Delivery Time: usually 5 weeks after confirmation
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
পণ্যের বর্ণনা

70FT Power Transmission Poles For Outside Electrical Transmission Line


Material: high quality Q345 hot rolled steel
Mounting Height: 3-30m or according to the requirements of customers
Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine

Brackets: Single or double brackets are in the shape and dimension as per customers requirement
Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

Groung mounted:

The length buried underground as per customers requirement


Galvanizing:


Hot dip galvanization with thickness of 80-100µm average

Powder coating: Pure polyester powder painting, color is optional




Specification:

1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance

11) Packages: Normally covered by sack or as customer’s requirement.

12) Voltage:10-550KV


70FT 1200kg Power Transmission Poles For Outside Electrical Transmission Line 0



Features & Advantage

1 High intensity, high resistance of shock or vibration
2 High efficiency up to 85%, 110lm/watt
3 Low illumination attenuation, 3% - 5% degradation/1kh
4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.
5 Excellent heat dispersion, and low power consumption.
6 Easy installation, free maintanence.
7 High Power Factor: 0.85
8 No UV radiation
9 No mercury or other inorganics
10 Constant current to guarantee long life





Our Services


1. Quick reply within 24 hours.
2. Convenient and smooth communication.
3. Detailed and professional specifications and guidances of products.
4. Lighting solutions by professional technician.
5. Fast &Cheap Delivery.
6. Free Light study.
7. Various Certificates.
8. Product Update.
9. OEM&ODM available.

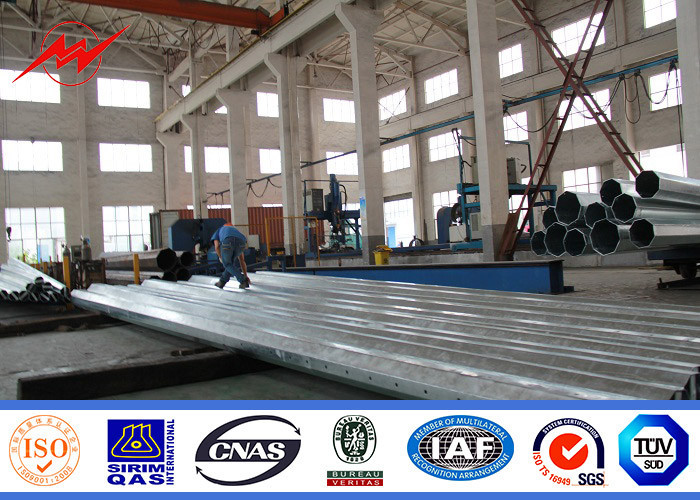

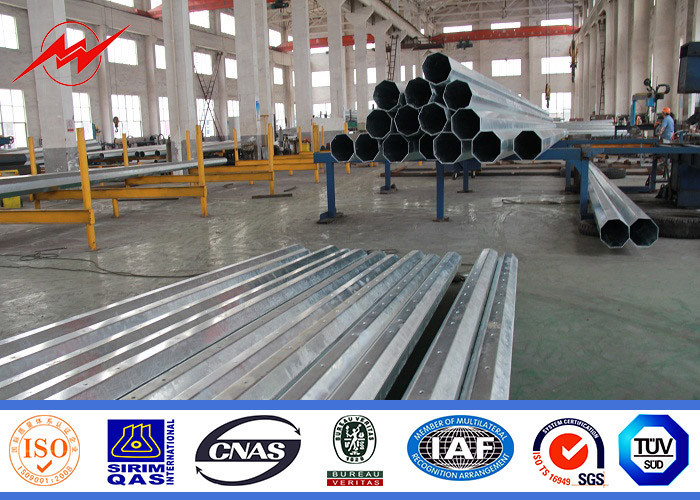

70FT 1200kg Power Transmission Poles For Outside Electrical Transmission Line 1



Our Company



Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
