আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ

চীন আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ সরবরাহকারী
আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ সরবরাহকারী আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ সরবরাহকারী আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ সরবরাহকারী আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ সরবরাহকারী

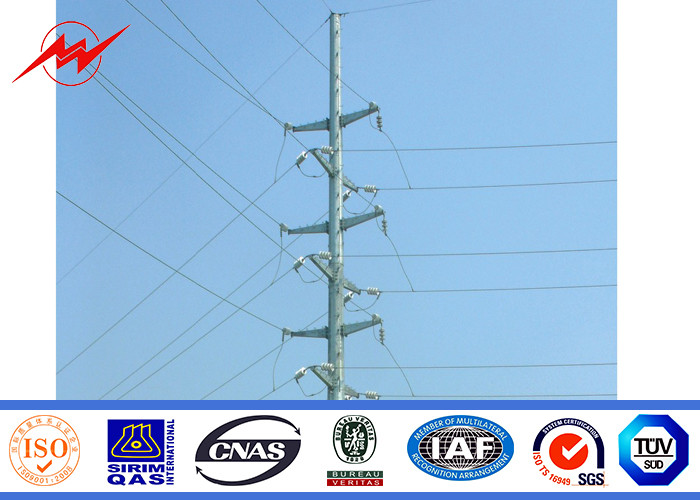

বড় ইমেজ :  আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ

পণ্যের বিবরণ:

Place of Origin: China
পরিচিতিমুলক নাম: MilkyWay
সাক্ষ্যদান: ISO9001/BV/
Model Number: Electric Power Pole

প্রদান:

Minimum Order Quantity: 1 pcs
মূল্য: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
পণ্যের নাম: বৈদ্যুতিক শক্তি মেরু আবেদন: পাওয়ার ট্রান্সমিশন
গ্যালভ্যানাইজেশন মান: গরম ডুব গ্যালভেনাইজেশন লিফট সময়: 50 বছর
পাটা: 15 বছর নকশা: কাস্টমাইজড
মান: আইএসও
লক্ষণীয় করা:

69 kv বৈদ্যুতিক শক্তি মেরু

,

iso বৈদ্যুতিক শক্তি মেরু

,

2 বিভাগ বৈদ্যুতিক শক্তি মেরু

 ISO 69 KV Polygonal Electric Power Pole 2 Sections with cross arm





 Description:

 Our Transmission Pole is designed for the high voltage power transmission and low voltage power  transmission.
 Designed and manufacutred for durability, corrosion resistance and visual appeal.

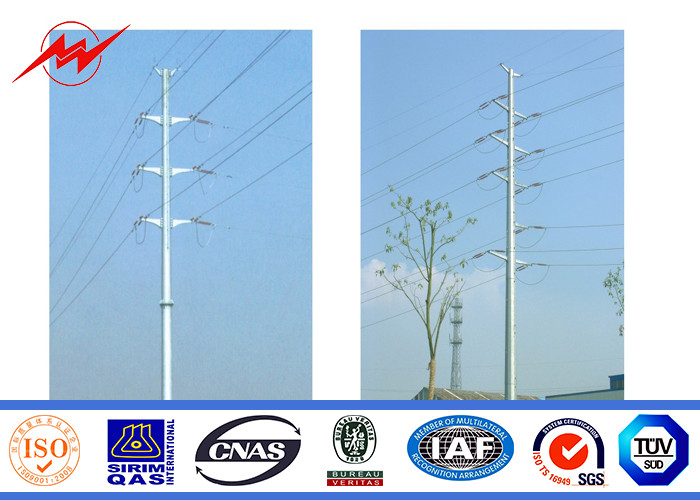

 আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ 0



 Specifications:



Suit for

Power Transmission

Shape

Conoid ,Multi-pyramidal,polygonal

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

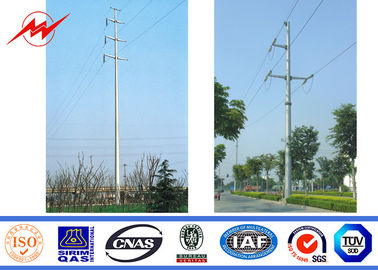

 আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ 1





  Packages:

  Our poles as normal cover by Mat or straw bale at the top and bottom ,
  anyway also can following by client required , each 40HC or OT can
  loading how many pcs will calculation base on the client actually
  specification and data

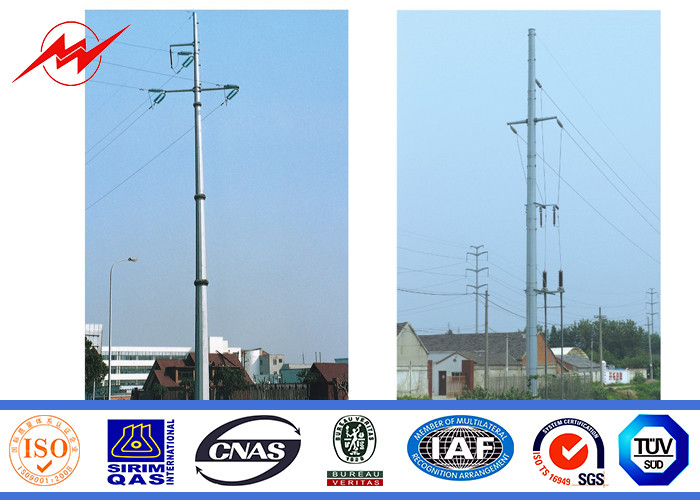

 আইএসও 69 কেভি বহুভুজ বৈদ্যুতিক শক্তি মেরু 2 বিভাগ 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
