Steel Tubular Generation Transmission Line Poles Tensile Strength 470 Mpa - 630 Mpa

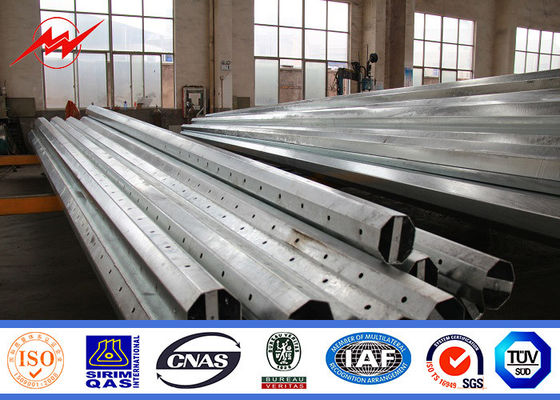

বড় ইমেজ : Steel Tubular Generation Transmission Line Poles Tensile Strength 470 Mpa - 630 Mpa

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Milky Way
সাক্ষ্যদান:	ISO//BV
Model Number:	138kv Steel Electrical Power Pole For Tubular Generation And Transmission

প্রদান:

Minimum Order Quantity:	one 40HQ
মূল্য:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Thickness:	1mm to 30mm	Shape:	Conoid, Multi-pyramidal,Columniform, polygonal or conical
Power:	10kv~550kv	Suit for:	electricity distribution
Wind speed:	160km/h, 30m/s	Welding standard:	AWS D 1.1
লক্ষণীয় করা:	transmission line poles , electric power pole

138kv Steel Electrical Power Pole For Tubular Generation And Transmission

Pole’s height	≥5m
Type	Low ,Middle and higher Voltage
Shape of pole	Conical, Round, Polygonal (Octagonal, Dodecagonal, etc).
Crossarm	Designas per customers’ requirement
Material	Steel materials conform to ASTM A36, ASTM A572. Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65
Wall thickness	2.5mm , 2.75mm, 3.0mm, 3.5mm, 3.75mm, 4.0mm, 4.5mm, 4.75mm, 5.0mm,etc
Sections	≤11900mm can be with one section and loaded into 40HQ container. ≥12000mm need be designed with 2 sections. Unless use Flat Rack Container.
Welding	Welding complies with CSA and AWS D1.1 standard.
Joint	Joint with Slip Joint or flange mode.
Installation	1. Burial Type. 2. Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Min Yield Stress	345 Mpa
Min Tensile Strength	470 Mpa ~ 630 Mpa
Voltage	10KV~550KV
Limited Weight	26 Ton/Container
Certificates	ISO 9001-2008 , AAA credit rating, etc
Protection	Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Mechanical Property

The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at
0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger
than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking
is around 2 times of design load.

Our steel poles are non-standard and have various types for you to choose. The pole price is based on pole specification which meaning different specification with different price. So better advise us your request specification so that we can quote you the exact price. Of course we can recommend you and give you some advice if you are a new buyer.

Galvanization

Standard: NFA91121
Average thickness of the galvanization: Not less than 70

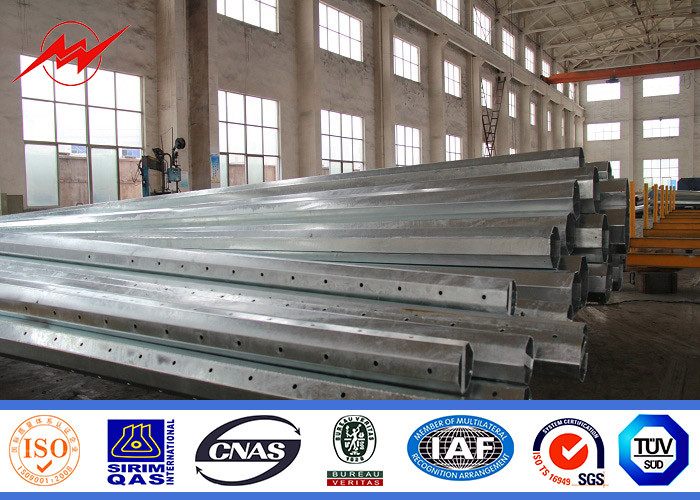

Steel Tubular Generation Transmission Line Poles Tensile Strength 470 Mpa - 630 Mpa 0

Manufacturer Tolerance

- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1̊ per 3 meters length
- Ovalisation : Maximum is 3%
- The average diameter : +/-0.5%
-Slip length: +/-150mm

Standard Accessory

- Top plate
- Base plate
- Bottom Strip
- Standard Hole
- Climbing Rung
- Anchor bolt
- Bitumen Protection
- Painted Marking
- Removable Ladder

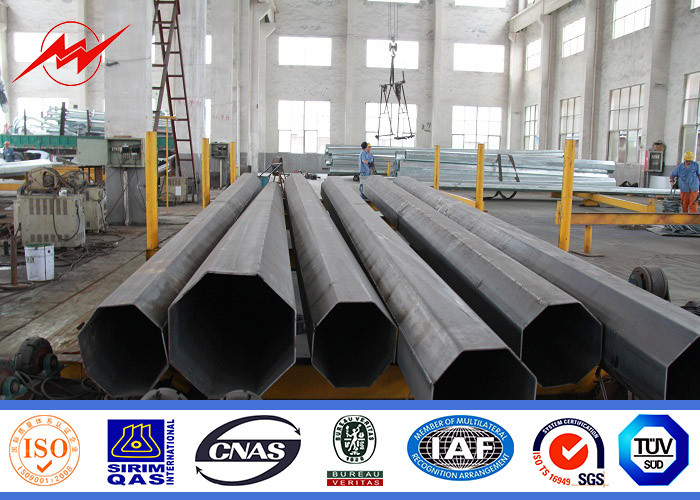

Steel Tubular Generation Transmission Line Poles Tensile Strength 470 Mpa - 630 Mpa 1

Packaging & Shipping

We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

The information to inquiry or purchase

- Steel pole height and force
- Cross arm type and length, the position to install in the steel pole
- The method to fix the cross arm (use Bolt to connect or use one or two template to weld in the steel pole to
install the cross arm)
- Safety factor of the steel pole
- Wind speed
- Type of climbing rung
- Destination port
- Others

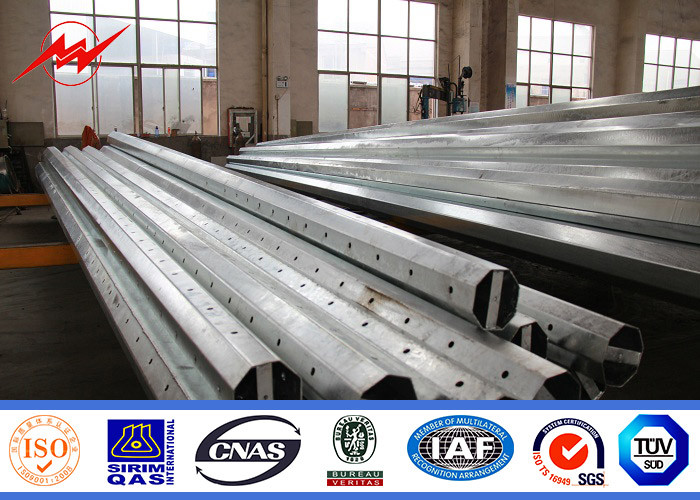

Steel Tubular Generation Transmission Line Poles Tensile Strength 470 Mpa - 630 Mpa 2
