Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating

চীন Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী
Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating সরবরাহকারী

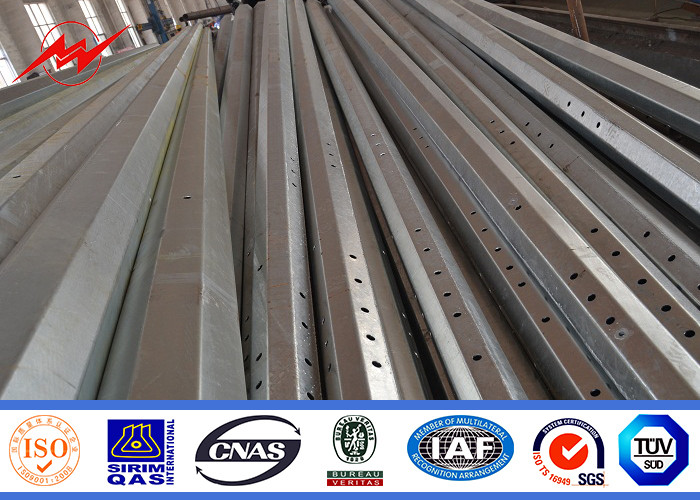

বড় ইমেজ :  Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating

পণ্যের বিবরণ:

Place of Origin: China
পরিচিতিমুলক নাম: MilkyWay
সাক্ষ্যদান: ISO9001/BV/SGS
Model Number: Galvanized Steel Power Pole

প্রদান:

Minimum Order Quantity: 1 pcs
মূল্য: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
বিস্তারিত পণ্যের বর্ণনা
Product Name: Galvanized Steel Power Pole Application: Tranmission Line
Design: Customized Surface treatment: hot dip galvanization
Welding standard: AWS D1.1 Galvanization Thickness: Average 86um
Material: Q345

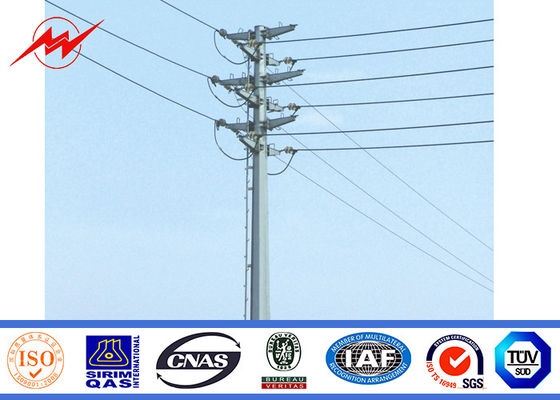

Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating





 Specifications:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

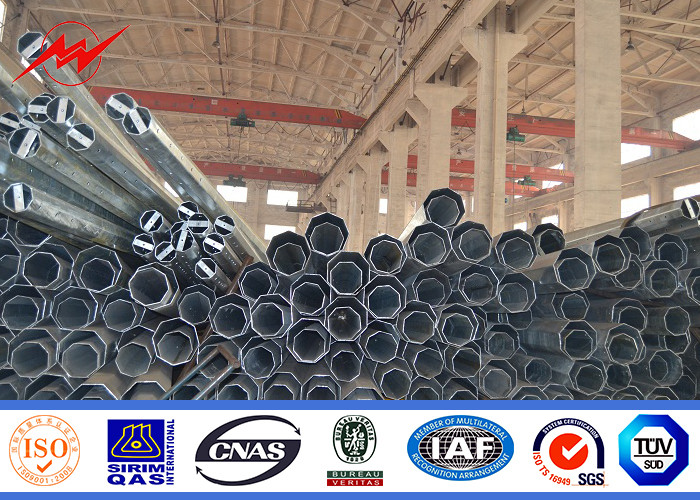

 Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating 0



 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

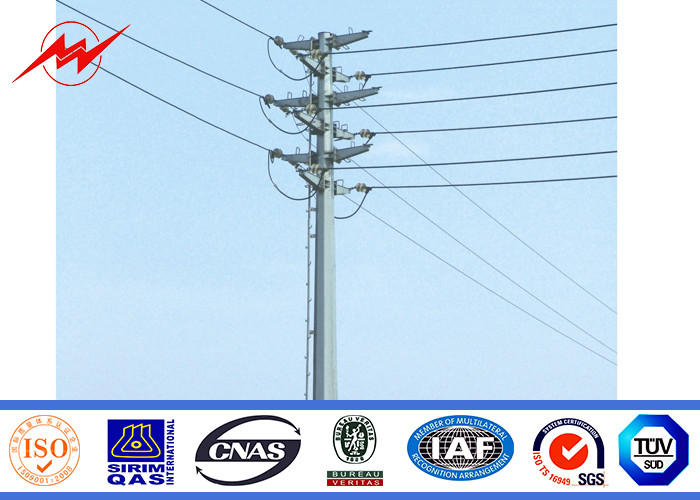

 Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating 1





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

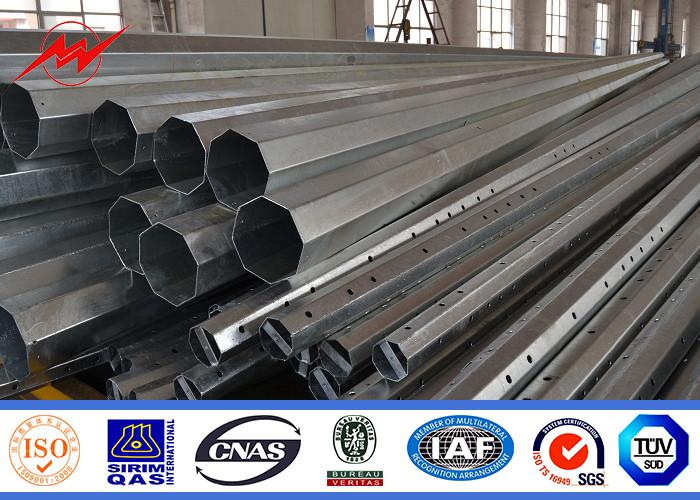

Africa 10m 500 Dan Electric Power Pole Steel Utility Poles Powder Coating 2





 Company History

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.
