550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole

চীন 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী
550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole সরবরাহকারী

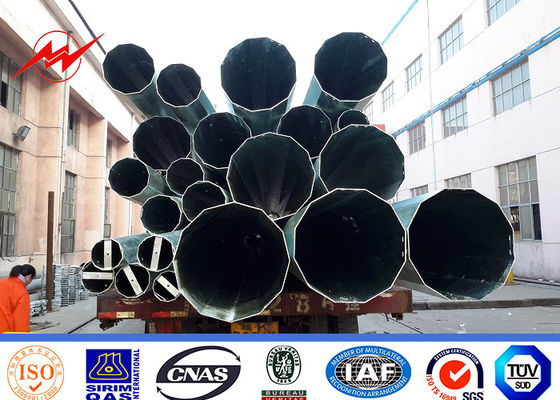

বড় ইমেজ :  550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole

পণ্যের বিবরণ:

Place of Origin: China
পরিচিতিমুলক নাম: MilkyWay
সাক্ষ্যদান: ISO9001/BV/
Model Number: Electric Steel Power Pole

প্রদান:

Minimum Order Quantity: 1 pcs
মূল্য: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product Name: Electric Galvanized steel Pole Application: Distribution Line
Material: SteelQ235,Q345 Minimum yield strength: 355 mpa
Max ultimate tensile strength: 620 mpa Wall thickness: 1mm-36mm
লক্ষণীয় করা:

metal power poles

,

electric utility poles

 550 KV Outdoor Bitumen Metal Power Pole Electric Galvanized Steel Pole with Cross Arm





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel





 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt

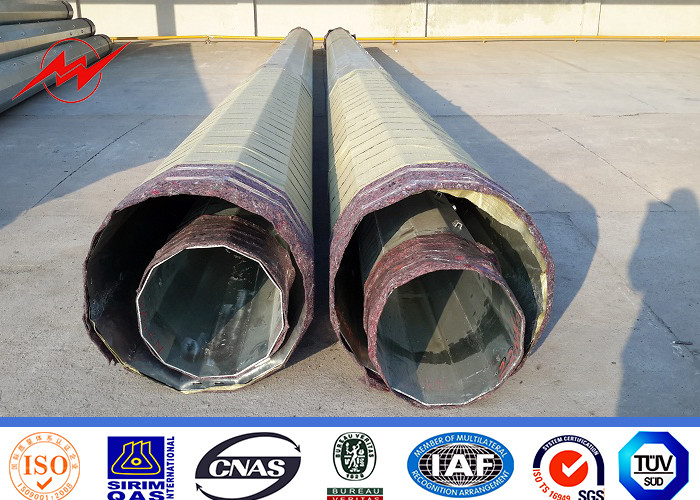

 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole 0



 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1

 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole 1





 Surface Treatment
 Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

 550 KV Outdoor Electrical Power Pole Distribution Line Bitumen Metal Power Pole 2
