33kv Galvanized Steel Transmission Poles For Power Distribution 5 - 15m Height

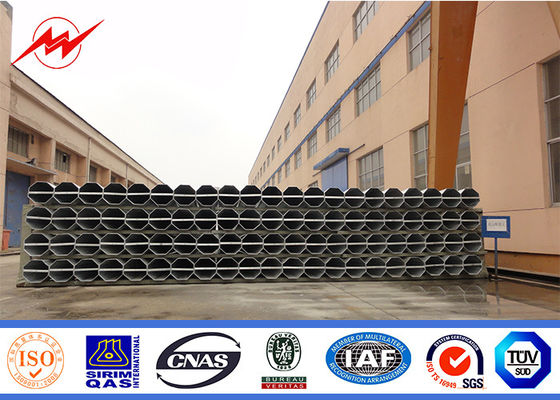

বড় ইমেজ : 33kv Galvanized Steel Transmission Poles For Power Distribution 5 - 15m Height

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Milky Way
সাক্ষ্যদান:	/BV/ISO
Model Number:	33kv Galvanized Transmission Line Steel Pole Tower For Distribution

প্রদান:

Minimum Order Quantity:	one 40 HQ
মূল্য:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Type:	straight pole, tensile pole, turn pole	Suit for:	electricity distribution
Shape:	conoid, multi-pyramidal, columniform, polygonal or conical	Welding standard:	AWS D1.1
tolerance:	+/-2%	Design Load in Kg:	300~ 1000 Kg applicated to 50cm from the to pole
লক্ষণীয় করা:	galvanized light pole , steel power poles

33kv Galvanized Transmission Line Steel Pole Tower For Distribution

Specifications

1. Protecion class: IP65

2. Light source: 100W-400W high-pressure sodium lamp

3. Rated voltage and frequency: 220V(±10%)/50Hz

4. Caliber: 60mm

5. Protecting class against eletric shock: Type I

6. Lamp in die-cast aluminum, coated with powder polyes ter after anti-corrosive treatment

7. A lamp body with a built-ray lens

8. Fasteners screws, all stainless steel

9. Applicable height: 6m-12m (according to customers' requirment)

10. Working environment:-35°C--+55°C

11. Long term life :more than 100,000 hours

12. Nast of steel, coated with powder polyester after hot galvanizing treatment

13. Lamp can adjust up,down or around and can be changed the projection angle

14. Environmentally friendly:instead of liquid mercury, easy to recycle

15. Applicable places: City Road,overpass,factory areas,bridge,harbour and etc.

Material	Q345 hot rolled steel
Height	5-15m,
Shape	Round,octagonal,polygonal
Brackets	Double brackets in the shape as customer's request
Base plate	Square or round in shape with slottes holes for anchor bolt
Length	Within 14m once forming without slip joint
Wall thickness	2.5mm-20mm
Galvanizing	Hot dip galvanization with thickness of 80-100µm average

33kv Galvanized Steel Transmission Poles For Power Distribution 5 - 15m Height 0

Packaging detail

Packed with good cartons and bubble wrap(the pole can be packed by bubble wrap,the lamp head can be packed by carton.Specific details according to customer's demands)

Delivery detail

15-20 days received the deposit(Specific details according to actual situation)

It can be used on main highway,main street,commercial center,etc. outdoor place.

We can according to your design and drawings to produce. If you only need light pole,we are also provide for you.
The above configuration is for reference only. If you are interested in,please feel free to contact us for more information at anytime.

33kv Galvanized Steel Transmission Poles For Power Distribution 5 - 15m Height 1
