230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories

বড় ইমেজ : 230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories

পণ্যের বিবরণ:

Place of Origin:	Yixing,Jiangsu,China
পরিচিতিমুলক নাম:	Milky Way
সাক্ষ্যদান:	ISO9001
Model Number:	Stel Tubular Pole

প্রদান:

Minimum Order Quantity:	1 Poles
মূল্য:	Negotation
Packaging Details:	Naked Package or customerized
Delivery Time:	10-30 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	30,000 Tons per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Arm:	Cross Arm	Mounted Type:	Burial or Flange
Load Weight:	Customized	Material:	Q345,Q235,GR50
Surface Treatment:	galvanization,bitumen	Pole Shape:	Dodecogan,Octagonal
Average gavanzation thickness:	according to the pole thickness
লক্ষণীয় করা:	metal light pole , floodlight pole

230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories

Quick Details for Galvanized Steel Pole

Item No	230KV Transmission 3mm Thickness Steel Tubular Pole Galvanized With Prestressed Anchor Bolt Accessories
Height	15M,20M,25M are all available
Thickness	Econmic thickness is 6mm wall thickness,or customized design are available
Shape	According to customer's design or our standard shape such as Conical,round,octagonal,dodecagon
Material	Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 Q460, minimum yield strength>=460n/mm2
Burial Length	600mm,800mm,1000mm,2500mm
Suit for	High voltage transmission line

Qucik Introduction

Glavanized Steel Pole is a lighting application solution achieved by fundamental design and ideally suited to residential street lighting and commercial lighting purposes. The Avenue range’s standard maximum height is 12m with a standard maximum outreach of 4.5m (tapered round) and 3m (tapered octagonal), however different heights and outreaches can be designed.

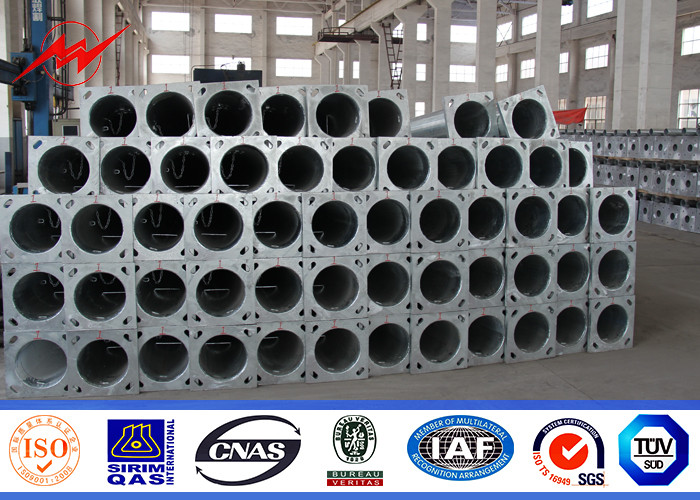

Pole Flange Type

230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories 0

Flange Mounted Details

More information,please contact with us.

230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories 1

MATERIAL

Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.

FINISHING

Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.

No welding, cutting or drilling is done after galvanizing.

The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.

SHAPE

Anchor Bolts

• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"

• Hot dip galvanized

• Supplied as optional product

• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for

24" X 3/4". Higher grades for larger sizes.

• Supplied with hexagon nut and washer

Nut & Bolt Cover

• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.

• High strength polyurethane

• Available in colours

Handhole

•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover

The standard tenon size is 2 3/8" O.D. by 7" long.

Any designs not shown in this catalogue can be produced by Nova Pole International

and inquiries should be communicated to company representatives.

Approval drawings are available on request.

All measurements shown here are imperial measure (inches, square inches and feet)

unless otherwise noted.

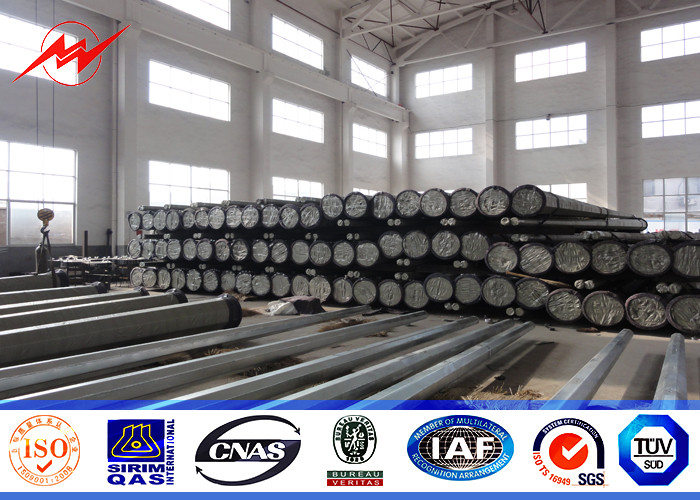

WORKSHOP

230kv 3mm Thickness Tubular Steel Pole With Prestressed Anchor Bolt Accessories 2

Company:

Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
